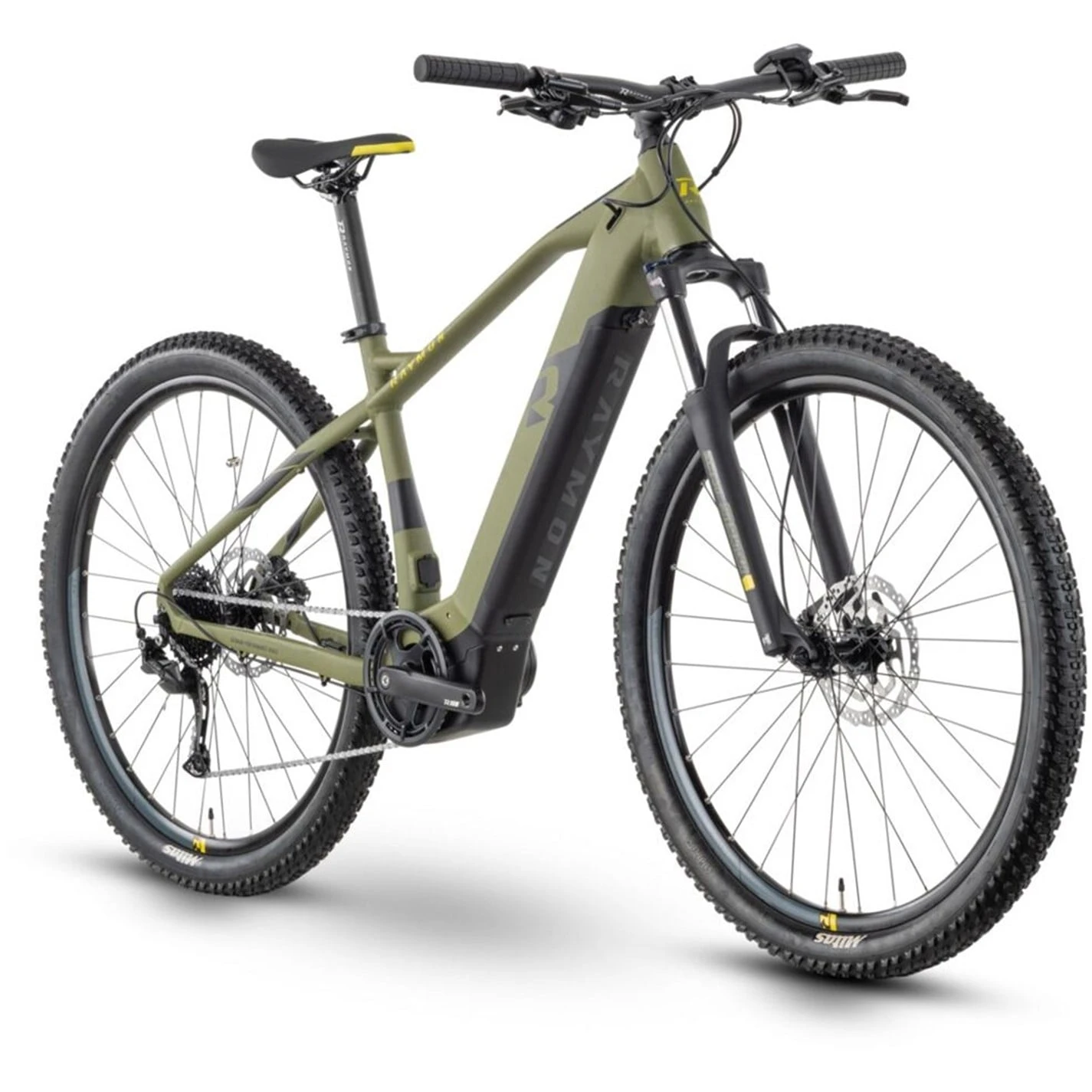

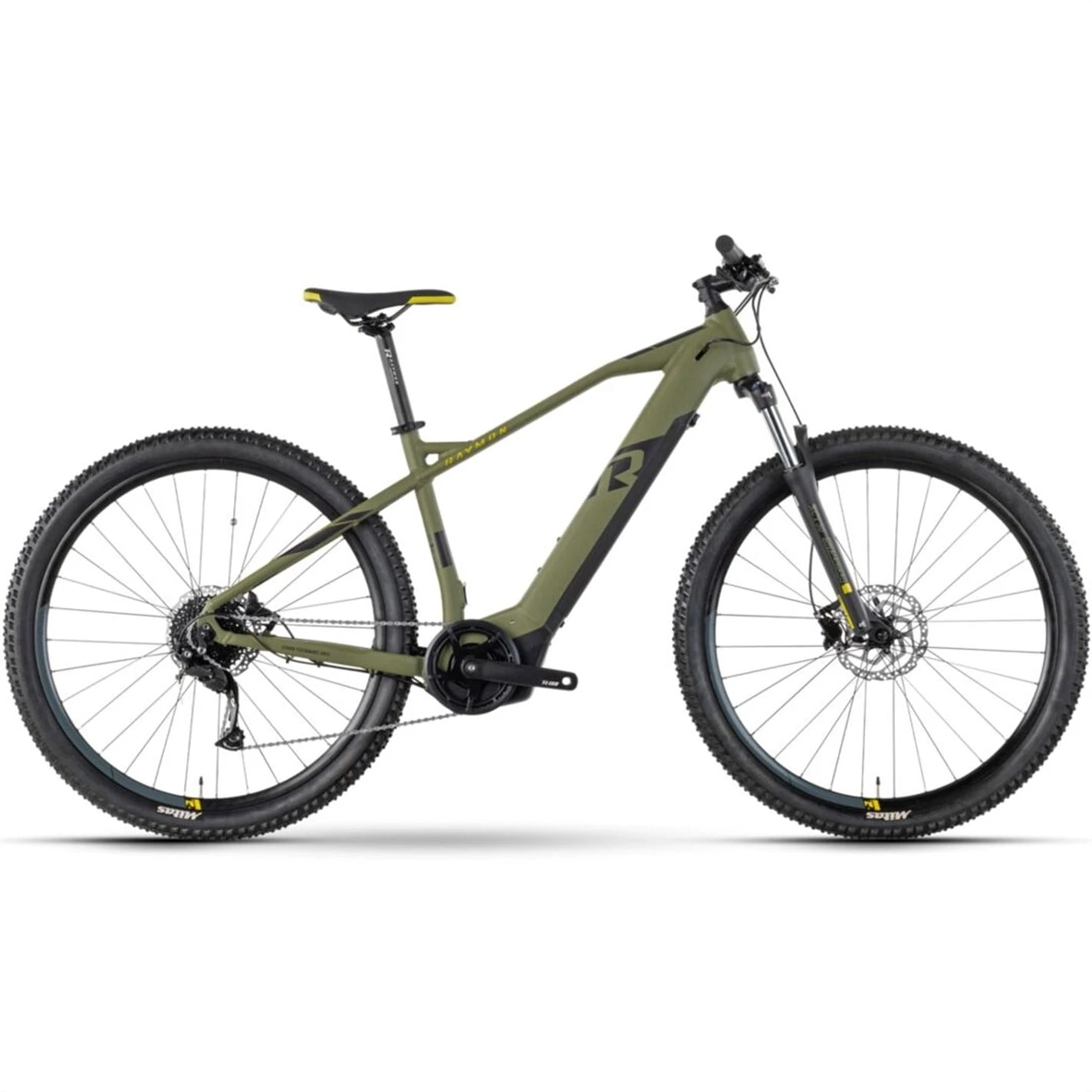

HardRay E 4.0 Electric Mountain Bike

About the Raymon HardRay E 4.0

Experience the power of the Yamaha PW-TE 250w Motor, the control of the Suntour XT30 Fork with 100mm of travel, and the confidence of Tektro HD-M280 Hydraulic disc brakes. Conquer any trail with ease, knowing that the HardRay 4.0 is built for performance, comfort, and safety. With its sleek design, this mountain bike is ready to elevate your off-road adventures. Get ready to unleash your off-road prowess with the HardRay 4.0!

Key Features

• Yamaha PW-TE 250w Motor
• Integrated Yamaha ML500, 500 Wh battery
• Suntour XT30 Fork with 100mm of travel
• Tektro HD-M280 2-piston Hydraulic disc brakes

Specifications

Frameset

• Frame: Alloy 6061, Integrated battery
• Fork: SR SUNTOUR XCT30 HLO, Coil, 100 mm

Wheels

• Wheel Sizes: 27.5in (XS and S) 29in (M, L and XL)
• Wheelset: Mach 1 640E
• Tyres: Mitas Ocelot, 2.35

Drivetrain

• Shifters: Tektro SL-M350R
• Rear Derrailleur: Tektro RD-M350, 9-S
• Chain: KMC Z9
• Chainset: Wheeltop, Aluminum forged, JIS – R Raymon, 38 T chainring
• Cassette: Tektro CS-M350, 11-46 T

Components

• Handlebar: R Raymon Riser 31.8 mm, 720 mm, Sweep: 6 °, Rise: 15 mm
• Stem: R Raymon 31.8, 7 °, Ahead
• Brakes: Tektro HD-M280, 2-piston, Hydraulic disc brake
• Saddle: R Raymon MTB

E-System

• Battery: Yamaha ML500, 500 Wh, 36 V
• Motor: Yamaha PW-TE, 250 W, 60 Nm
• Display: Yamaha Display A, LCD-Display, Micro-USB

Bike Sizing

Product code: 930119
